Beam Analytics & Diagnostics
D.I.S Germany offers a wide range of different products for charged particle beam diagnostics in order to determine all relevant beam properties.
Beam Analytics & Diagnostics
D.I.S Germany offers a wide range of different products for charged particle beam diagnostics in order to determine all relevant beam properties.
-
Faraday Cup

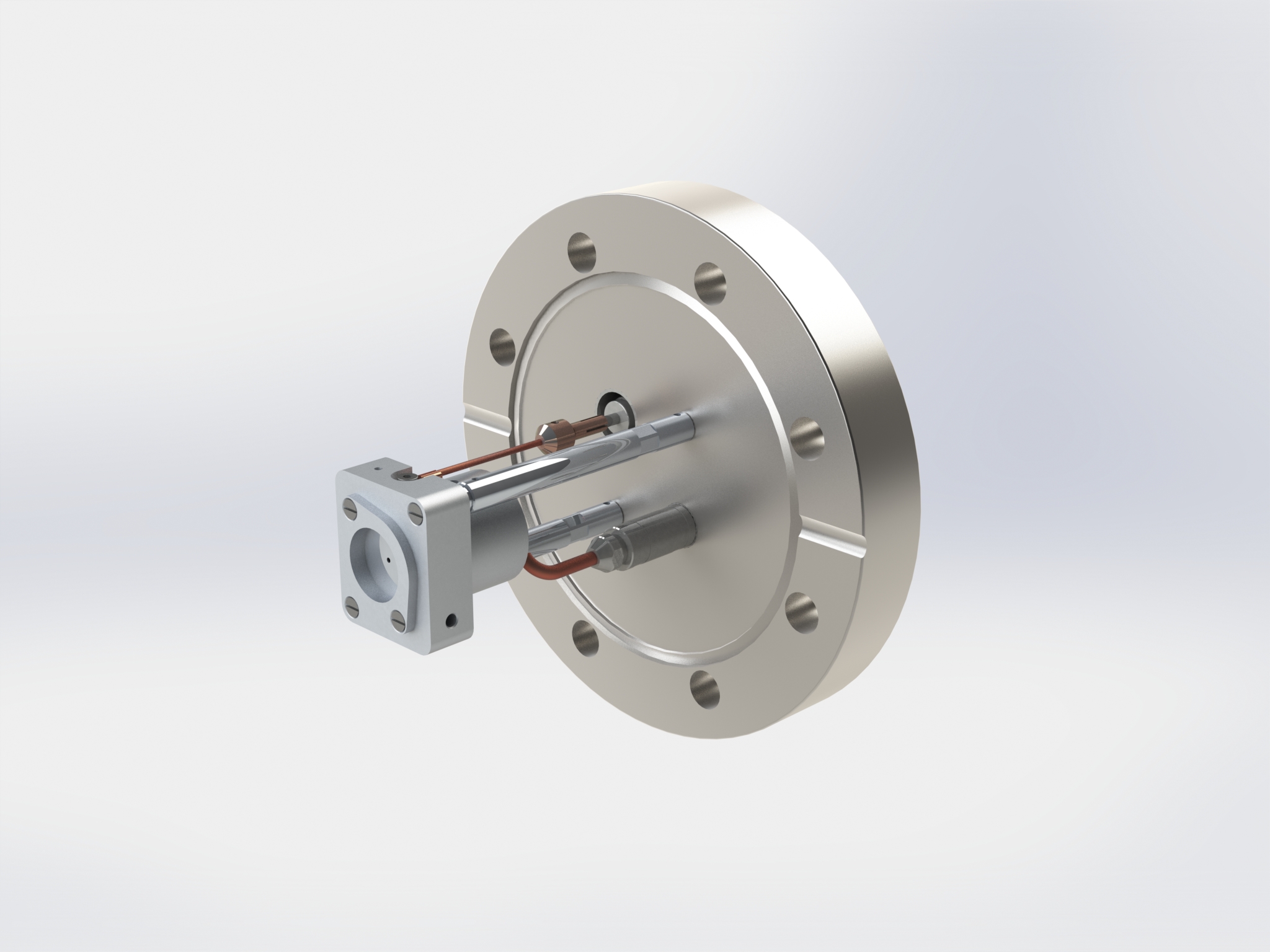

Our CF63 inline Faraday cup is a passively cooled solution for real-time charged particle beam current measurement, handling beam power loads up to 200 W and operating down to ultra-high vacuum conditions.
- Product number
- 931-S7-09-00006
- Type of source
- inline
- Flange
- CF63
- Material
- copper, stainless steel
- Cooling
- Passive
- Special features
- Fixed inline installation
- CF63 base flange
- Exchangeable apertures with diameters ranging from 0.5 mm up to 5 mm
- Triaxial wiring and feedthrough for the Faraday cup detector for low noise measurement
- Passive cooling for power loads up to 3 W
-
Faraday Cup

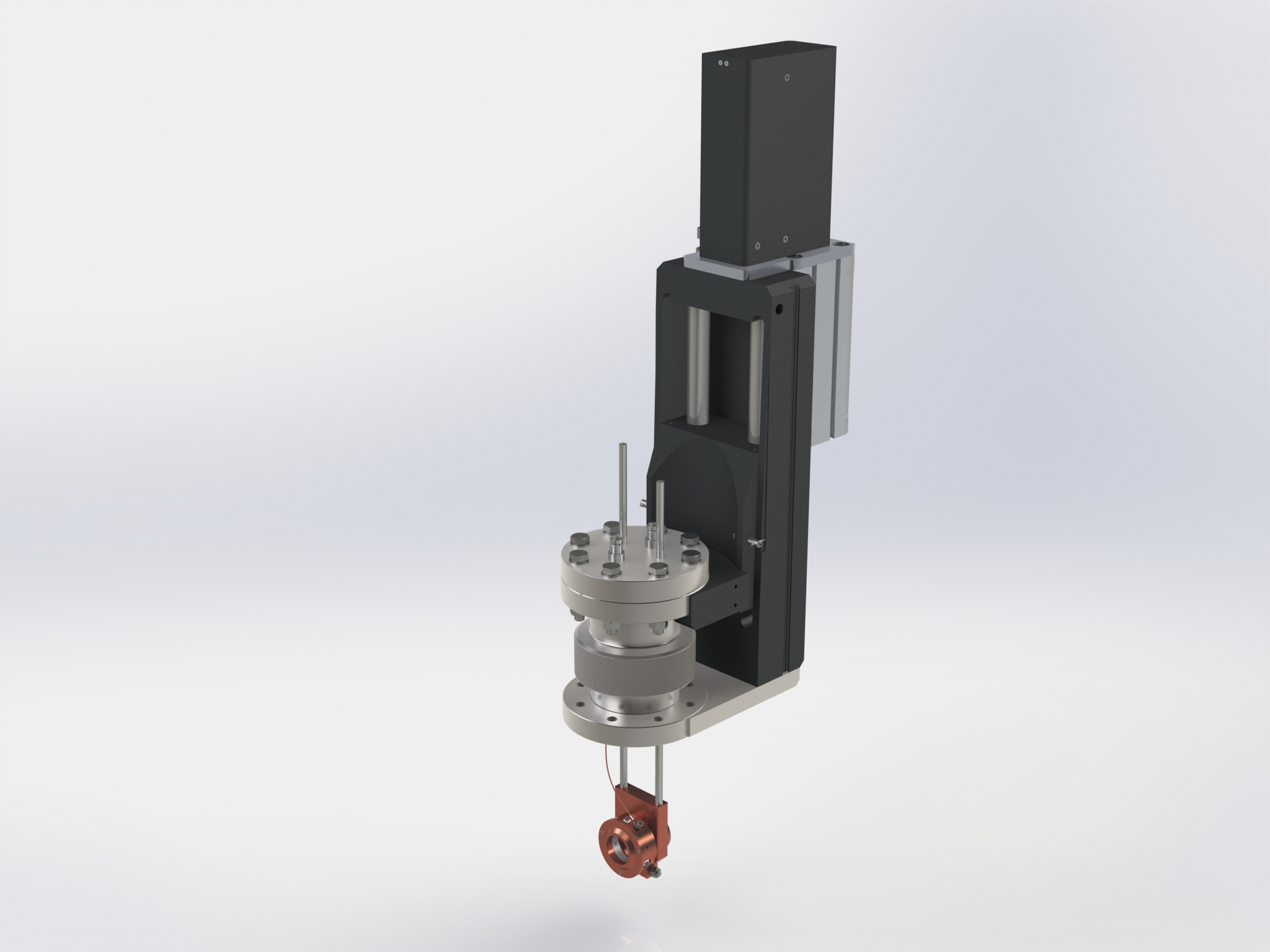

Our CF63 Faraday cup features water cooling for power loads up to 60 W and maintains a temperature below 60°C in extreme UHV environments. It offers retractable installation on a pneumatic linear feedthrough with a 100 mm retraction length.
- Product number
- 931-S7-09-00011
- Type of source
- retractable
- Flange
- CF63
- Material
- copper, stainless steel
- Cooling
- Water
- Special features
- Linear feedthrough
- CF63 base flange
- 25 mm aperture diameter
- Designed for electron beam energies up to 8 MeV
- Water cooling for thermal power loads up to 60 W
-
Faraday Cup

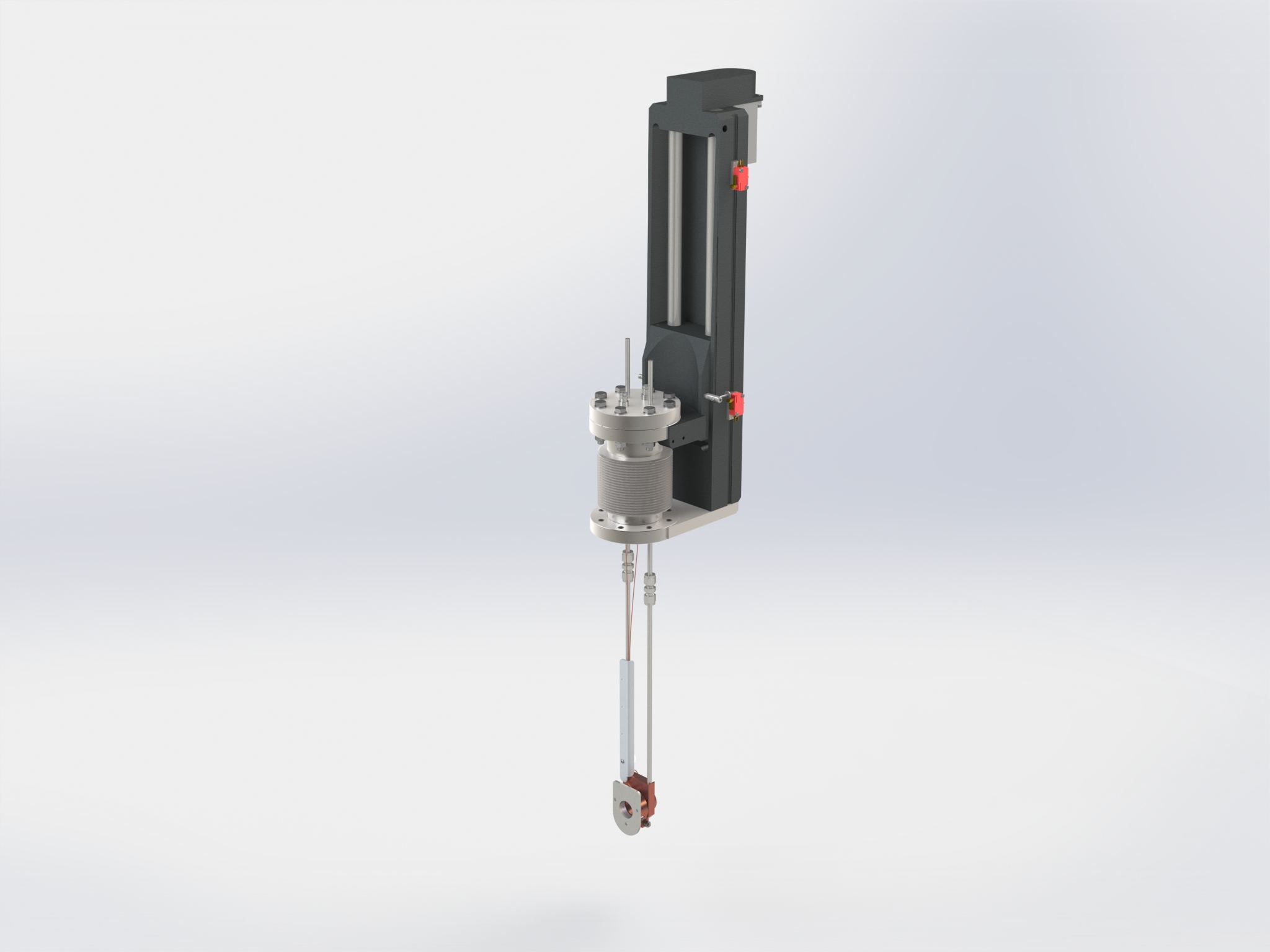

Our CF63 Faraday cup features water cooling for thermal power loads up to 200 W. It is retractable and positionable via a motorized linear feedthrough with a 250 mm stroke, offering precise control and flexibility for your system.
- Product number
- 931-S7-09-00015
- Type of source
- retractable
- Flange
- CF63
- Material
- copper, stainless steel
- Datasheet
- Special features
- Linear feedthrough
- CF63 base flange
- Aperture diameter of 25 mm
- Designed for beam scanning applications of ion beams
- Applicable for electron beam energy up to 8 MeV
- Water cooling for thermal power loads up to 200 W (10 W/cm²)
- Retractable/positionable via motorized linear feedthrough with 250 mm stroke
-
Faraday Cup

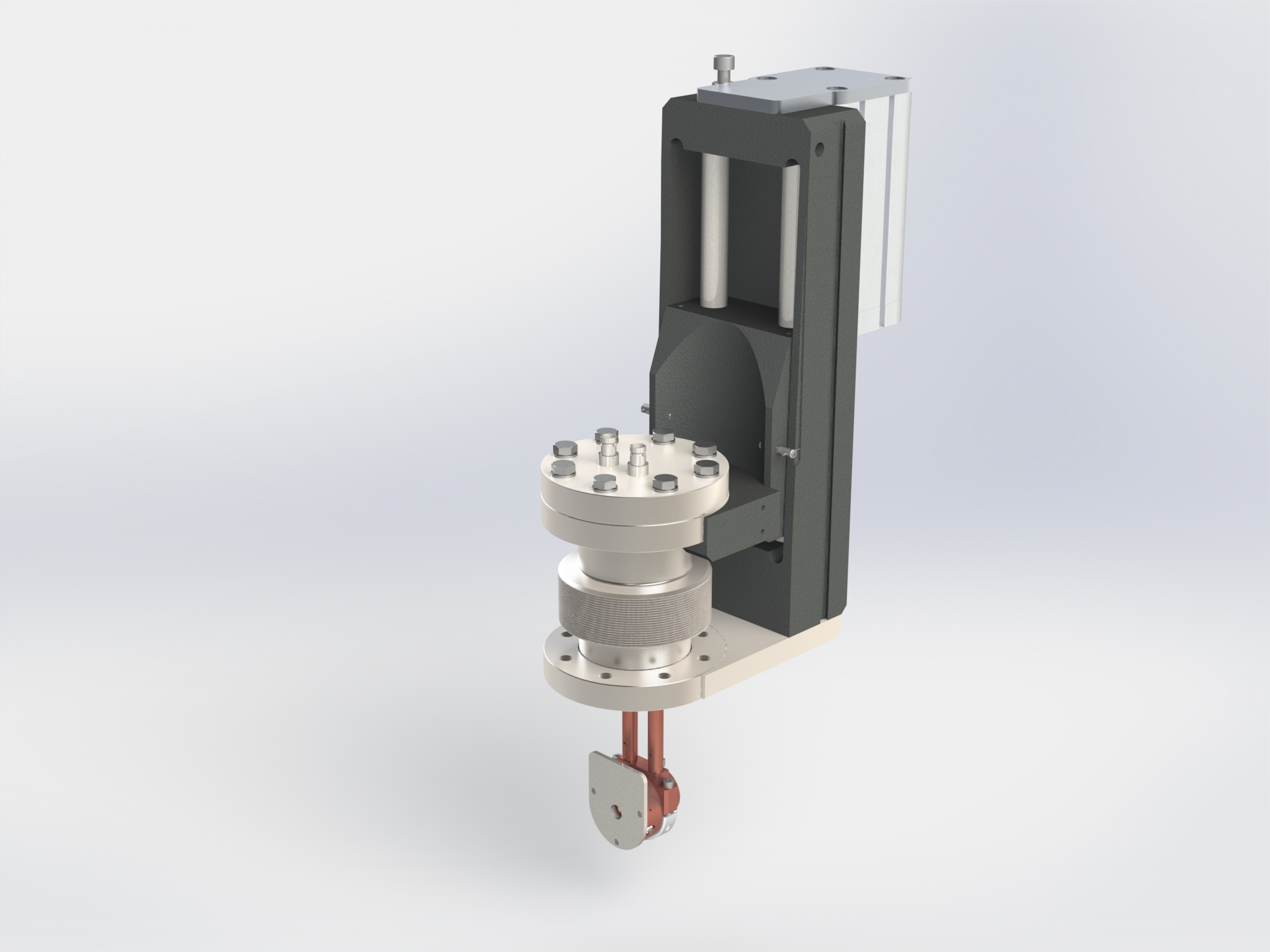

Our CF63 Faraday features passive cooling for power loads up to 30 W. It is retractable and positionable via a motorized linear feedthrough with a 100 mm stroke, offering precise control and flexibility for your system.
- Product number
- 931-S7-09-00009
- Type of source
- retractable
- Flange
- CF63
- Material
- copper, stainless steel
- Cooling
- Passive
- Datasheet
- Special features
- Linear feedthrough
- CF63 base flange
- Aperture diameter of 20 mm
- Designed for beam scanning applications of ion beams
- Applicable for electron beam energy up to 8 MeV
- passive cooling for thermal power loads up to 30 W (0.1 W/cm²)
- Retractable/positionable via motorized linear feedthrough with 100 mm stroke
-
Customized Faraday Cup
Didn’t find the right product?We also offer customized solutions tailored to your specific requirements. We look forward to advising you on an individual solution. Whether you need a customized setup or support with system integration, we are here to help you meet your requirements.
- Type of source
- inlineretractable
- Flange
- CF63
- Material
- copper, stainless steel
-

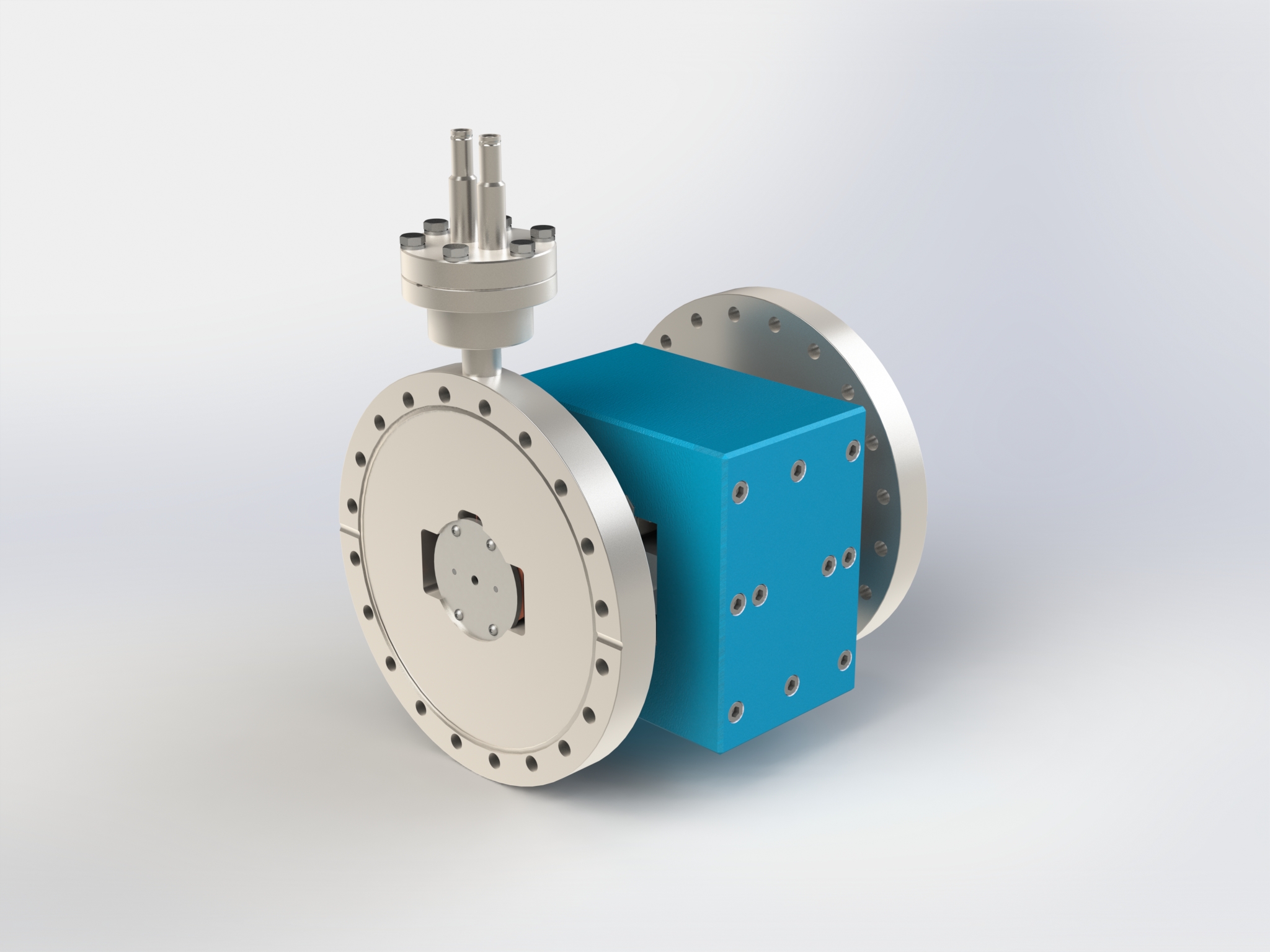

Wien Filter CF160
The CF160 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
- Product number
- 933-S7-09-00001
- Flange
- CF160
- Material
- stainless steel, steel, titan
- Special features
- Suitable design for operation with light, single-charged ions with energies around 5 keV
- 5 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 5 kV electrical feedthrough on a single DN40 CF flange
-

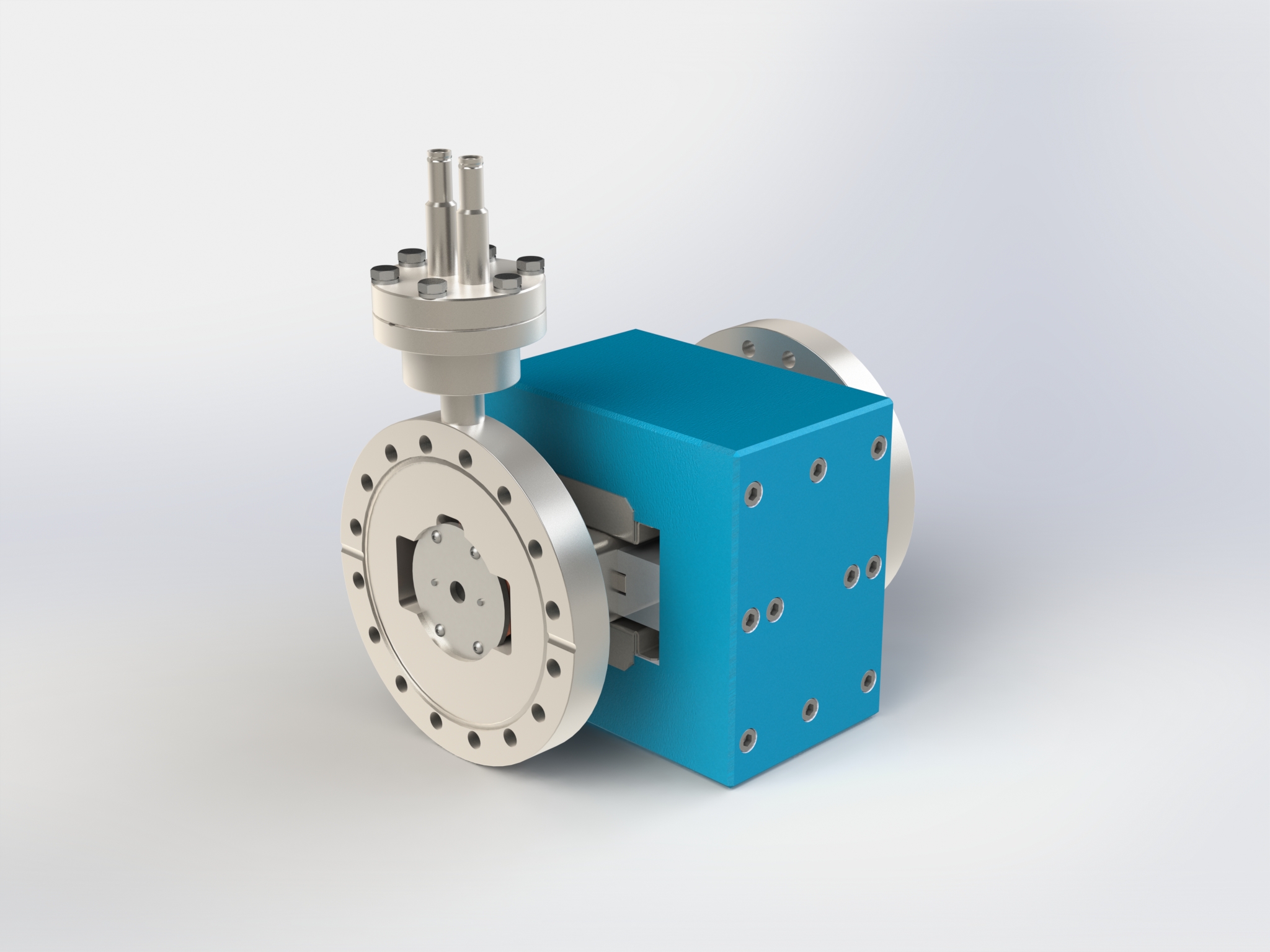

Wien filter CF100
The CF100 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
- Product number
- 933-S7-09-00004
- Flange
- CF100
- Material
- stainless steel, steel, titan
- Special features
- Design suitable for operation with hydrogen and helium ions in the energy range of 5 to 30 keV
- 15 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 5 kV electrical feedthrough on a single DN40 CF flange
-
Wien filter CF63
The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
- Product number
- 933-S7-09-00006
- Flange
- CF63
- Material
- stainless steel, steel, titan
- Special features
- Suitable design for operation with singly charged low-energy ions (e.g., H3O+, Ag+, K+, Cl–)
- 4 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 5 kV electrical feedthrough on a single DN40 CF flange
-

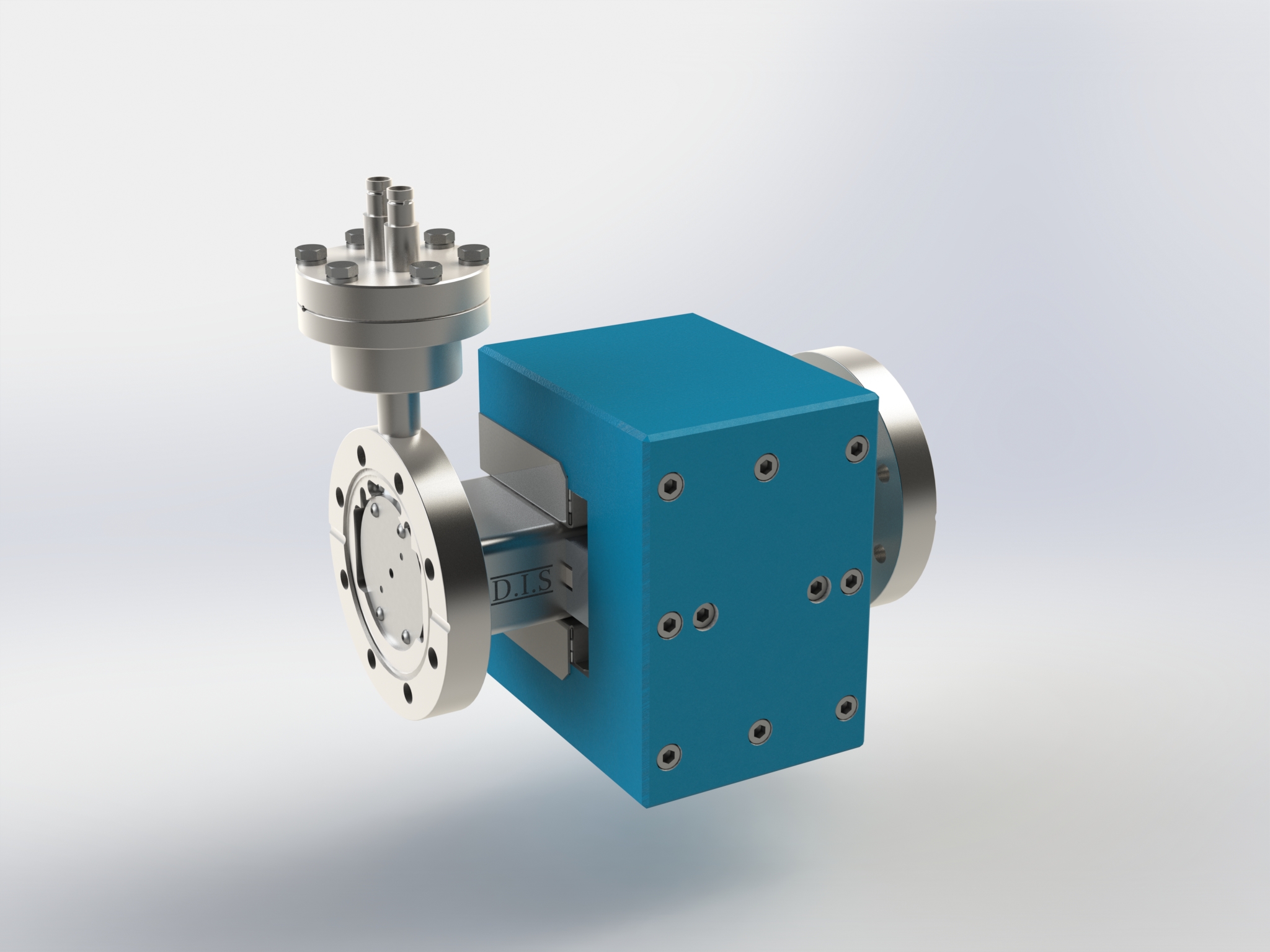

Wien filter CF63
The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
- Product number
- 933-S7-09-00016
- Flange
- CF63
- Material
- stainless steel, steel, titan
- Special features
- Suitable design for operation with singly charged low-energy ions (e.g., H3O+, Ag+, K+, Cl–)
- 5 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 10 kV electrical feedthrough on a single DN40 CF flange
-

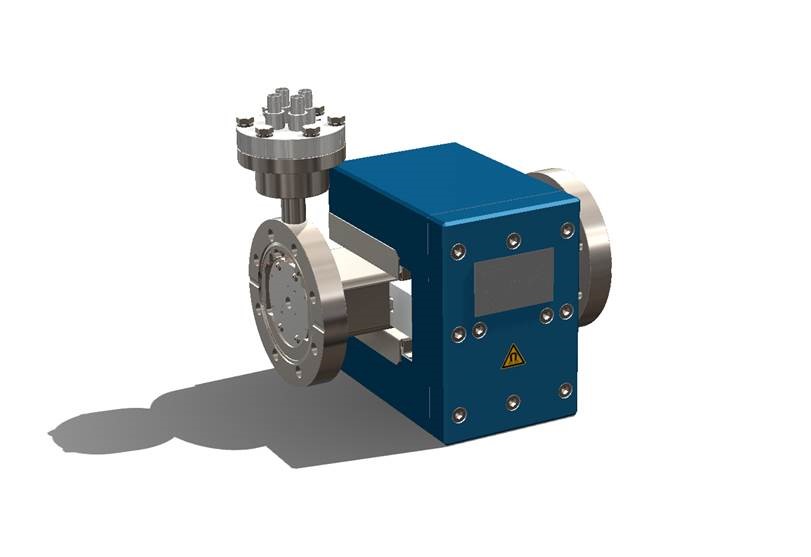

Wien filter CF63
The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
- Product number
- 933-S7-09-00020
- Flange
- CF63
- Material
- stainless steel, steel, titan
- Special features
- Suitable design for operation with singly charged low-energy ions (e.g., H3O+, Ag+, K+, Cl–)
- 5 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 10 kV electrical feedthrough on a single DN40 CF flange
