Beam Analytics & Diagnostics
D.I.S Germany offers a wide range of different products for charged particle beam diagnostics in order to determine all relevant beam properties.
Beam Analytics & Diagnostics
D.I.S Germany offers a wide range of different products for charged particle beam diagnostics in order to determine all relevant beam properties.
-
Customized Wien filter
Didn’t find the right product?We also offer customized solutions tailored to your specific requirements. We look forward to advising you on an individual solution. Whether you need a customized setup or support with system integration, we are here to help you meet your requirements.
- Flange
- CF160, CF63
- Material
- stainless steel, steel, titan
- Special features
- Suitable design for operation with singly charged low-energy ions (e.g., H3O+, Ag+, K+, Cl–)
- 5 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 10 kV electrical feedthrough on a single DN40 CF flange
-
Neutral Particle Filter

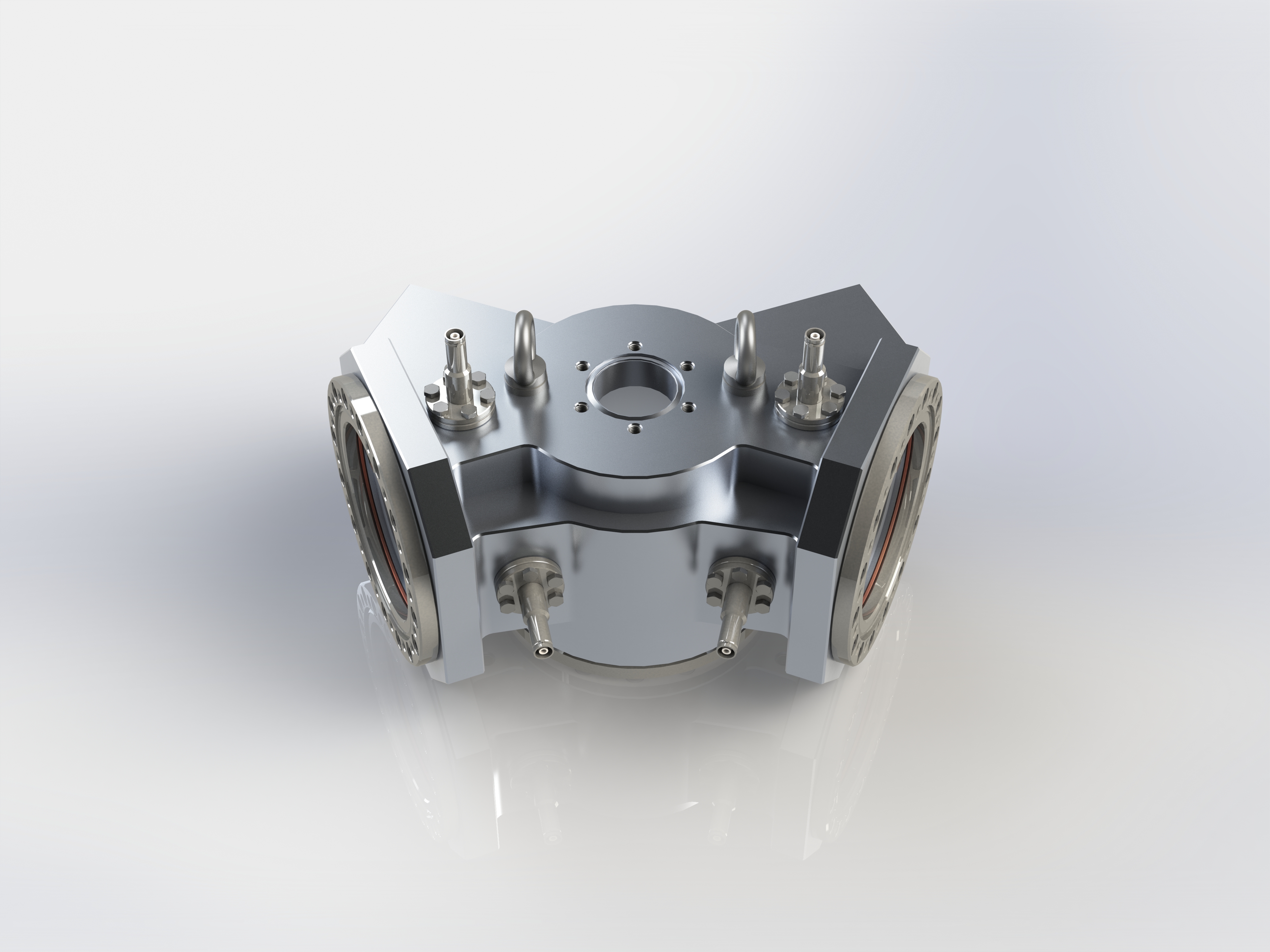

Centrally mounted on a CF100 flange, our neutral particle filter removes neutral particles from a particle beam. It operates by using electric fields to deflect charged particles along a bent beamline path while guiding neutral particles into a beam dump.
- Product number
- 934-S7-09-00001
- Flange
- CF100
- Material
- aluminum, titan
- Special features
- Aluminum chamber with ConFlat (CF) flange adapter
- DN100 CF beamline interface flanges
- DN100 CF and 2x DN40 CF accessory flanges (e.g., vacuum pump, viewport, vacuum gauge, beam dump, or Faraday cup installation)
- 2 pairs of vertical deflection plates
- Superimposing lens system for refocusing purposes
-
Customized Neutral Particle Filter
Didn’t find the right product?We also offer customized solutions tailored to your specific requirements. We look forward to advising you on an individual solution. Whether you need a customized setup or support with system integration, we are here to help you meet your requirements.
- Flange
- CF100
- Material
- aluminum, titan
- Special features
- Aluminum chamber with ConFlat (CF) flange adapter
- DN100 CF beamline interface flanges
- DN100 CF and 2x DN40 CF accessory flanges (e.g., vacuum pump, viewport, vacuum gauge, beam dump, or Faraday cup installation)
- 2 pairs of vertical deflection plates
- Superimposing lens system for refocusing purposes
