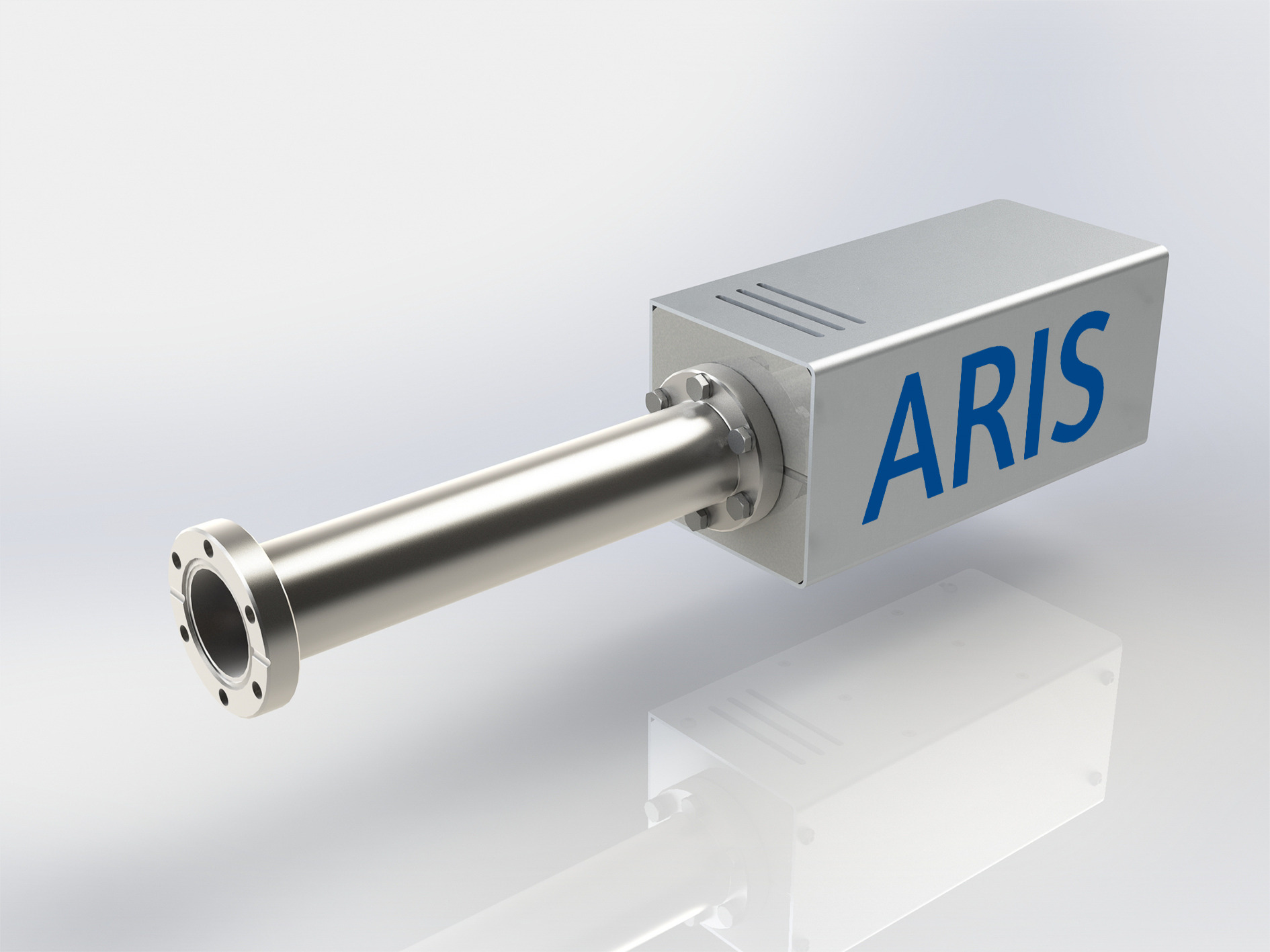

ARIS – Advanced Residual Inspection System
The D.I.S Gas Analyzer ARIS is an easy-to-use device designed for fast analysis of low-pressure gas components. It operates within a pressure range from 1×10⁻⁵ mbar to 1×10⁻¹⁰ mbar and yields the partial pressure values of the constituents as well as a precise total pressure. Only a PC and external power supply are required for […]
- Product number
- 951-S7-09-00003
- Method
- TOF (Time-Of-Flight)
- Video
- Special features
- All-In-One residual gas analytics and partial/total pressure measurement device
- Total pressure measurement range from atmospheric pressure down to 1 x 10-10 mbar
- Fast and simple residual gas analysis in a broad pressure range from 1×10-5 mbar down to 1×10-10 mbar
- Mass resolution (R = m/Δm) of 50
- Mass range of up to 250 amu
- All required command & control components and power supplies onboard
- User-friendly and intuitive control software
- Data communication via ethernet connection.
- No magnetic fields and no RF-fields
