Ion Sources

Ion sources are an essential component of every ion beam facility and require the operator’s highest attention. Therefore, each ion source offered by D.I.S Germany is based on many years of experience in the field of ion beam technology and benefits from the bundled competencies of D.I.S Germany and our partners in the United States.

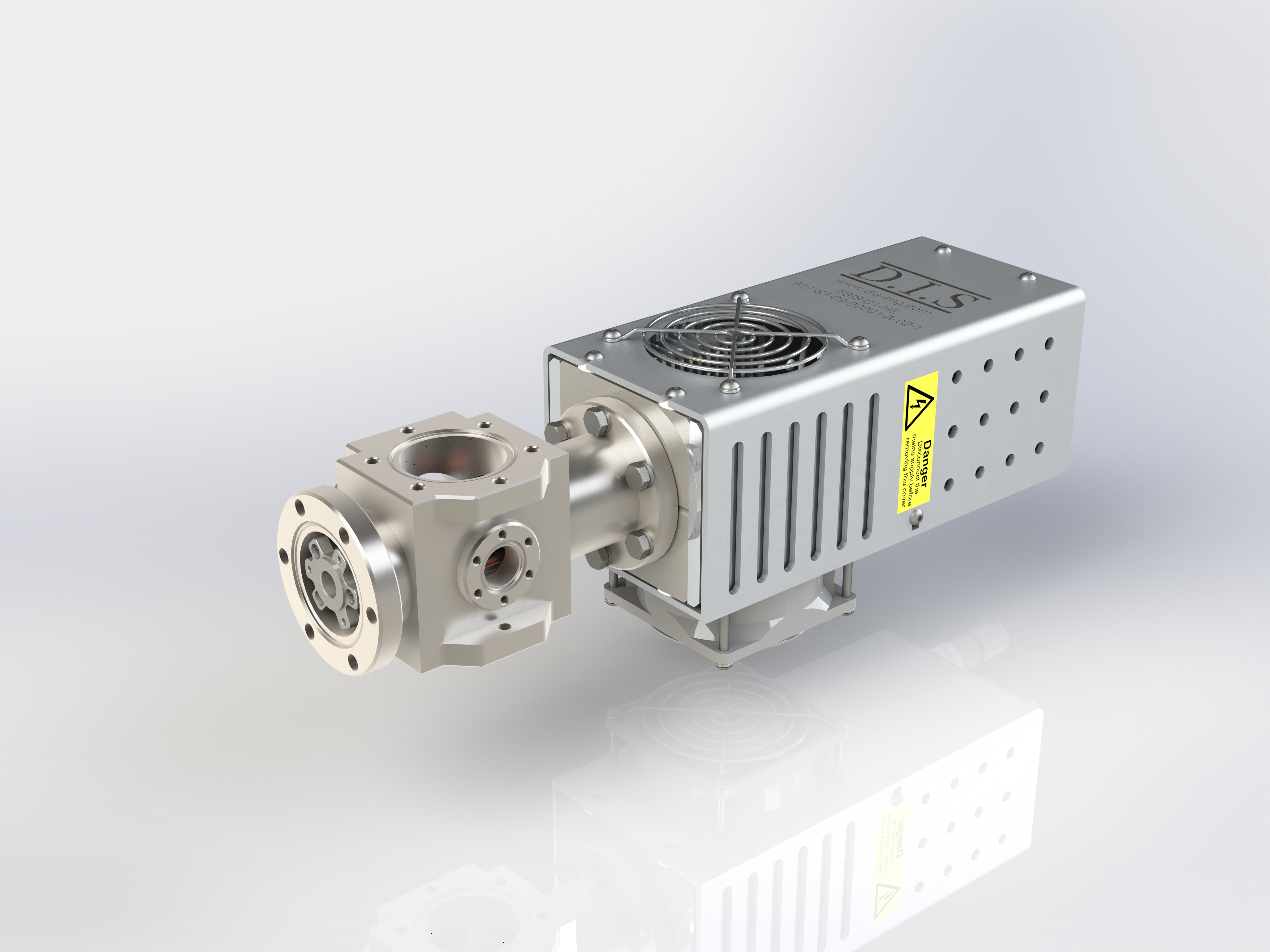

  1. EBIS-C1

    The D.I.S EBIS-C1 is an electron beam ion source featuring an ultra-compact design while still beingcapableofproducingbeam currentsofseveralhundredpAof multi-charged ionsofall gaseous elementsandcompounds. Themodularandoperator-friendly D.I.SEBIS-C1 is suitable for use inawide variety of applications for basic research in various scientificdisciplines, for teaching andtraining,andfortechnological applications.

    Product number
    911-S7-09-00001
    Type of source
    CF40
    Flange
    CF40
    Ion current
    <1nA
    Final energy
    <1nA
    Energy feed
    electron gun
    Datasheet
    911-S7-08-00001_-B-01_EBIS-C1_-_data_sheet (1)Download
    Video
    Show videoDownload
    Special features
    • Ultra-compact, modularized electron beam ion source (EBIS) mounted on a DN40CF flange for easy integration into customized facilities
    • Beam currents of several hundred picoamperes (pA) of multi-charged ions from all gaseous elements and compounds
    • Ion generation for ion extraction and X-ray/UV/EUV spectroscopy
    • Two cathode options with different diameters available depending on the field of application
    • Wien filter module for ion charge state and mass selection
    • Easily combinable with other charged particle beam-related devices
    • Simple, cost-effective, and user-friendly access to the world of highly charged ions

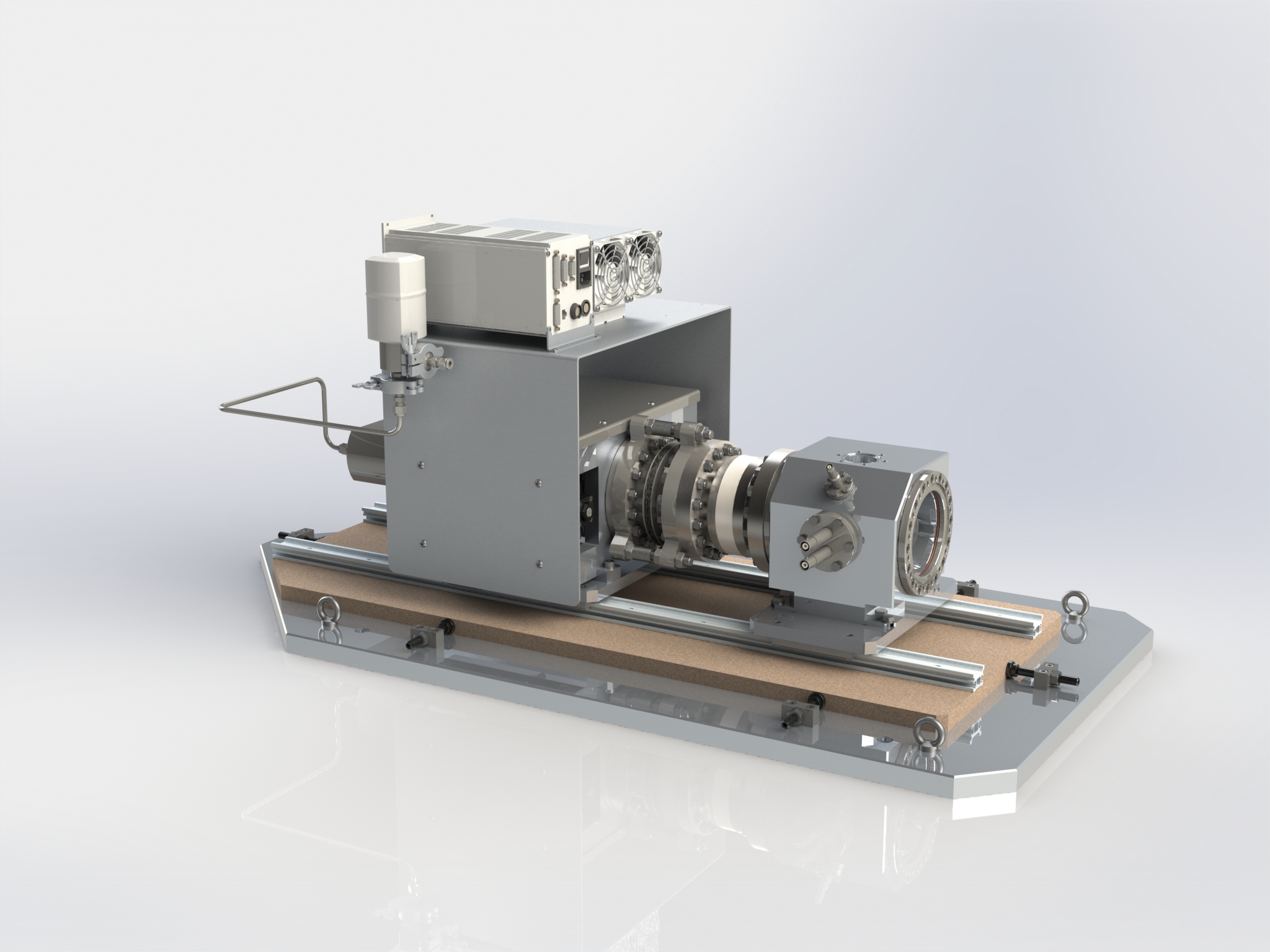

  2. ECRIS

    The D.I.S ECRIS-2.45 is an electron cyclotron resonance ion source (ECRIS) optimized for the production of ion beam currentsofuptoseveralhundreds ofmicroamperesforawiderange ofelements. Themodularandoperator-friendly D.I.SECRIS-2.45issuitableforuse inawide variety of applications for basic research in various scientificdisciplines, for teaching andtraining,andfortechnological applications.

    Product number
    913-S7-09-00001
    Type of source
    CF100
    Flange
    CF100
    Ion current
    <10mA
    Final energy
    <20kV
    Energy feed
    microwave generator
    Datasheet
    913-S7-08-00001_RIBS-2.45-SourceExtraction_-_data_sheet (1)Download

  3. Customized Ion Source

    Didn’t find the right product?We also offer customized solutions tailored to your specific requirements. We look forward to advising you on an individual solution. Whether you need a customized setup or support with system integration, we are here to help you meet your requirements.

    Type of source
    CF 40, CF 100
    Flange
    CF 40, CF 100
    Ion current
    <1nA, <15kV
    Final energy
    <1nA, <20kV
    Energy feed
    electron gun, microwave generator
